Features

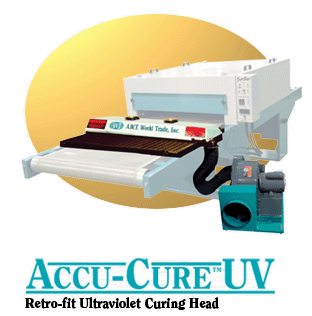

- Re-positionable UV Curing Head
Provides variable lamp output of 300, 200 or 100 watts; nearly silent operation.
- Master Control Console
Caster-mounted controls may be used on either side of the chassis.
- Ozone Removal System
Vents ozone and heated air outside the operating area.
- Advanced Design Light Guards
Protect the operator from UV and visible bank light, absorbs lamp heat.
- Modular Design
Allows custom retro-fitting on existing equipment or conversion of existing conventional dryers to UV.
- Interlock Safety Feature
Alerts operator audibly or visually when lamp housing cover is open.
- Vacuum Hold-down
Perforated plates provide belt hold-down for thin substrates.
- FiberlonTM Conveyor Belt
For long life and stability.
- Adjustable Gate Height
Raises or lowers to accommodate varying substrate thickness and eliminates light leakage.
- Brush-Free, Maintenance Free, Variable Speed Drive Motor.
- Easily Removable Reflector For Cleaning.
MASTER CONTROL PANEL FEATURES
- Output meter indicates real lamp wattage during operation.
- Visual alert indicates the conveyor has stopped.
- Interlock shuts down system when the housing of the curing unit is open or unlocked.
- Switch activates audio alarm.
- Variable output selector: 100, 200 and 300 watts.
- Hour meter shows operating time on lamp.
Specifications
ACCU-CURE SINGLE LAMP CURING MODULE ONLY
| Cat. No |
Curing Width |
Electrical |
Amps |
| AC-12 |
12" ( 31 cm ) |
230V, 1 Ph, 60 Hz |
-- |
| AC-24 |
24" ( 61 cm ) |
230V, 1 Ph, 60 Hz |
70A |
| AC-36 |
36" ( 91 cm ) |
230V, 1 Ph, 60 Hz |
80A |
| AC-48 |
48" ( 122 cm ) |
230V, 1 Ph, 60 Hz |
90A |
| AC-60 |
60" ( 152 cm ) |
230V, 1 Ph, 60 Hz |
110A |
| AC-72 |
72" ( 183 cm ) |
230V, 1 Ph, 60 Hz |
-- |
| AC-80 |
80" ( 203 cm ) |
230V, 1 Ph, 60 Hz |
-- |
| AC-100 |
100" ( 254 cm ) |
230V, 1 Ph, 60 Hz |
-- |
ACCU-CURE DOUBLE LAMP CURING MODULE ONLY
| Cat. No |
Curing Width |
Electrical |
Amps |
| ACD-12 |
12" ( 31 cm ) |
230V, 1 Ph, 60 Hz |
-- |
| ACD-24 |
24" ( 61 cm ) |
230V, 1 Ph, 60 Hz |
40A |
| ACD-36 |
36" ( 91 cm ) |
230V, 1 Ph, 60 Hz |
50A |
| ACD-48 |
48" ( 122 cm ) |
230V, 1 Ph, 60 Hz |
48A |
| ACD-60 |
60" ( 152 cm ) |
230V, 1 Ph, 60 Hz |
60A |
| ACD-72 |
72" ( 183 cm ) |
230V, 1 Ph, 60 Hz |
-- |
| ACD-80 |
80" ( 203 cm ) |
230V, 1 Ph, 60 Hz |
-- |
| ACD-100 |
100" ( 254 cm ) |
230V, 1 Ph, 60 Hz |
-- |
|
Options & Accessories
VACUUM HOLD-DOWN & EXHAUST RETROFIT PACKAGES FOR SINGLE LAMP CURING MODULES
| Cat. No |
Description |
Conveyor Width |
| VHP-12 |
Hold-down & exhaust retrofit pkg. - Single Lamp |
12" ( 31 cm ) |
| VHP-24 |
Hold-down & exhaust retrofit pkg. - Single Lamp |
24" ( 61 cm ) |
| VHP-36 |
Hold-down & exhaust retrofit pkg. - Single Lamp |
36" ( 91 cm ) |
| VHP-48 |
Hold-down & exhaust retrofit pkg. - Single Lamp |
48" ( 122 cm ) |
| VHP-60 |
Hold-down & exhaust retrofit pkg. - Single Lamp |
60" ( 152 cm ) |
| VHP-72 |
Hold-down & exhaust retrofit pkg. - Single Lamp |
72" ( 183 cm ) |
| VHP-80 |
Hold-down & exhaust retrofit pkg. - Single Lamp |
80" ( 203 cm ) |
| VHP-100 |
Hold-down & exhaust retrofit pkg. - Single Lamp |
100" ( 254 cm ) |
VACUUM HOLD-DOWN & EXHAUST RETROFIT PACKAGES FOR DOUBLE LAMP CURING MODULES
| Cat. No |
Description |
Conveyor Width |
| DVHP-12 |
Hold-down & exhaust retrofit pkg. - Double Lamp |
12" ( 31 cm ) |
| DVHP-24 |
Hold-down & exhaust retrofit pkg. - Double Lamp |
24" ( 61 cm ) |
| DVHP-36 |
Hold-down & exhaust retrofit pkg. - Double Lamp |
36" ( 91 cm ) |
| DVHP-48 |
Hold-down & exhaust retrofit pkg. - Double Lamp |
48" ( 122 cm ) |
| DVHP-60 |
Hold-down & exhaust retrofit pkg. - Double Lamp |
60" ( 152 cm ) |
| DVHP-72 |
Hold-down & exhaust retrofit pkg. - Double Lamp |
72" ( 183 cm ) |
| DVHP-80 |
Hold-down & exhaust retrofit pkg. - Double Lamp |
80" ( 203 cm ) |
| DVHP-100 |
Hold-down & exhaust retrofit pkg. - Double Lamp |
100" ( 254 cm ) |
|
