Description

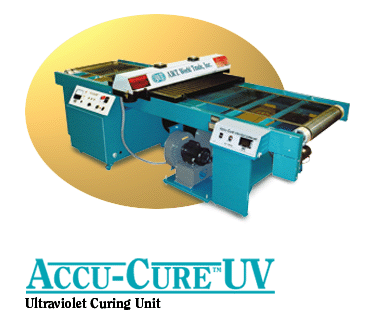

The Accu-Cure Ultraviolet Curing Unit is the culmination of over 15 years experience in UV technology. No other curing system offers this remarkable combination of performance control and safety features. Engineered for high speed curing of vinyl, polyesters, paper and other heat sensitive substrates, the computer designed cooling system minimizes heat transmission to stock in the curing chamber. A.W.T.'s Ozone Removal System vents ozone and hot air from the point of origin then safely out of the working area. Specially engineered light guards protect the operator form exposure to actinic light output. Adjustable gate height on the curing head module may be set according to stock thickness, and eliminates light leakage. Variable position wattage selection allows the operator to adjust lamp output to conditions, prolong lamp life and conservers energy.


Features

  • Re-positionable UV Curing Head
    Provides variable lamp output of 300, 200 or 100 watts; nearly silent operation.
  • Master Control Console
    Caster-mounted controls may be used on either side of the chassis.
  • Computer Engineered Cooling System
    The quietest & coolest system in the industry cools lamp and belt to prevent stock distortion.
  • Ozone Removal System
    Vents ozone and heated air outside the operating area.
  • Advanced Design Light Guards
    Protect the operator from UV and visible bank light, absorbs lamp heat.
  • Modular Design
    Allows custom retro-fitting on existing equipment or conversion of existing conventional dryers to UV.
  • Interlock Safety Feature
    Alerts operator audibly or visually when lamp housing cover is open.
  • Vacuum Hold-down
    Perforated plates provide belt hold-down for thin substrates.
  • FiberlonTM Conveyor Belt
    For long life and stability.
  • Adjustable Gate Height
    Raises or lowers to accommodate varying substrate thickness and eliminates light leakage.
  • Brush-Free, Maintenance Free, Variable Speed Drive Motor.
  • Easily Removable Reflector For Cleaning.


MASTER CONTROL PANEL FEATURES



  1. Output meter indicates real lamp wattage during operation.
  2. Visual alert indicates the conveyor has stopped.
  3. Interlock shuts down system when the housing of the curing unit is open or unlocked.
  4. Switch activates audio alarm.
  5. Variable output selector: 100, 200 and 300 watts.
  6. Hour meter shows operating time on lamp.


Specifications


ACCU-CURE SINGLE LAMP CURING UNITS
Cat. No Curing Width Conveyor Length

Electrical

Amps
ACS-12 12" ( 31 cm ) 5' ( 152 cm ) 230V, 1 Ph, 60 Hz --
ACS-24 24" ( 61 cm ) 10' ( 305 cm ) 230V, 1 Ph, 60 Hz 70A
ACS-36 36" ( 91 cm ) 10' ( 305 cm ) 230V, 1 Ph, 60 Hz 80A
ACS-48 48" ( 122 cm ) 10' ( 305 cm ) 230V, 1 Ph, 60 Hz 90A
ACS-60 60" ( 152 cm ) 10' ( 305 cm ) 230V, 1 Ph, 60 Hz 110A
ACS-72 72" ( 183 cm ) 10' ( 305 cm ) 230V, 1 Ph, 60 Hz --
ACS-80 80" ( 203 cm ) 10' ( 305 cm ) 230V, 1 Ph, 60 Hz --
ACS-100 100" ( 254 cm ) 10' ( 305 cm ) 230V, 1 Ph, 60 Hz --

Complete Conveyorized UV Curing Systems with Curing Head, Vacuum Hold-down & Exhaust System

ACCU-CURE DOUBLE LAMP CURING UNITS
Cat. No Curing Width Conveyor Length

Electrical

Amps
ACDS-12 12" ( 31 cm ) 7' ( 213 cm ) 230V, 1 Ph, 60 Hz --
ACDS-24 24" ( 61 cm ) 15' ( 457 cm ) 230V, 1 Ph, 60 Hz 40A
ACDS-36 36" ( 91 cm ) 15' ( 457 cm ) 230V, 1 Ph, 60 Hz 50A
ACDS-48 48" ( 122 cm ) 15' ( 457 cm ) 230V, 1 Ph, 60 Hz 48A
ACDS-60 60" ( 152 cm ) 15' ( 457 cm ) 230V, 1 Ph, 60 Hz 60A
ACDS-72 72" ( 183 cm ) 15' ( 457 cm ) 230V, 1 Ph, 60 Hz --
ACDS-80 80" ( 203 cm ) 15' ( 457 cm ) 230V, 1 Ph, 60 Hz --
ACDS-100 100" ( 254 cm ) 15' ( 457 cm ) 230V, 1 Ph, 60 Hz --

Complete Conveyorized UV Curing Systems with Curing Head, Vacuum Hold-down & Exhaust System


Options & Accessories

COOLING SECTIONS - 4 FEET

Cat. No Description
ACS-12AC4 Cooling station - 4 feet - 12" Wide
ACS-24AC4 Cooling station - 4 feet - 24" Wide
ACS-36AC4 Cooling station - 4 feet - 36" Wide
ACS-48AC4 Cooling station - 4 feet - 48" Wide
ACS-60AC4 Cooling station - 4 feet - 60" Wide
ACS-72AC4 Cooling station - 4 feet - 72" Wide
ACS-80AC4 Cooling station - 4 feet - 80" Wide
 ACS-100AC4 Cooling station - 4 feet - 100" Wide

COOLING SECTIONS - 8 FEET

Cat. No Description
ACS-12AC Cooling station - 8 feet - 12" Wide
ACS-24AC Cooling station - 8 feet - 24" Wide
ACS-36AC Cooling station - 8 feet - 36" Wide
ACS-48AC Cooling station - 8 feet - 48" Wide
ACS-60AC Cooling station - 8 feet - 60" Wide
ACS-72AC Cooling station - 8 feet - 72" Wide
ACS-80AC Cooling station - 8 feet - 80" Wide
 ACS-100AC Cooling station - 8 feet - 100" Wide

ADDITIONAL OPEN CONVEYORS

Cat. No Description
ACS-12OC Additional Open Conveyor - 12" Wide
ACS-24OC Additional Open Conveyor - 24" Wide
ACS-36OC Additional Open Conveyor - 36" Wide
ACS-48OC Additional Open Conveyor - 48" Wide
ACS-60OC Additional Open Conveyor - 60" Wide
ACS-72OC Additional Open Conveyor - 72" Wide
ACS-80OC Additional Open Conveyor - 80" Wide
 ACS-100OC Additional Open Conveyor - 100" Wide

QUARTZ POLISHED GLASS FOR HEAT REDUCTION

Cat. No Description
ACQ-12 Heat Reduction Quartz Polished Glass for 12" Systems
ACQ-24 Heat Reduction Quartz Polished Glass for 24" Systems
ACQ-36 Heat Reduction Quartz Polished Glass for 36" Systems
ACQ-48 Heat Reduction Quartz Polished Glass for 48" Systems
ACQ-60 Heat Reduction Quartz Polished Glass for 60" Systems
ACQ-72 Heat Reduction Quartz Polished Glass for 72" Systems
ACQ-80 Heat Reduction Quartz Polished Glass for 80" Systems
 ACQ-100 Heat Reduction Quartz Polished Glass for 100" Systems
